CO2 MONITOR XL
AIRCO2NTROL OBSERVER

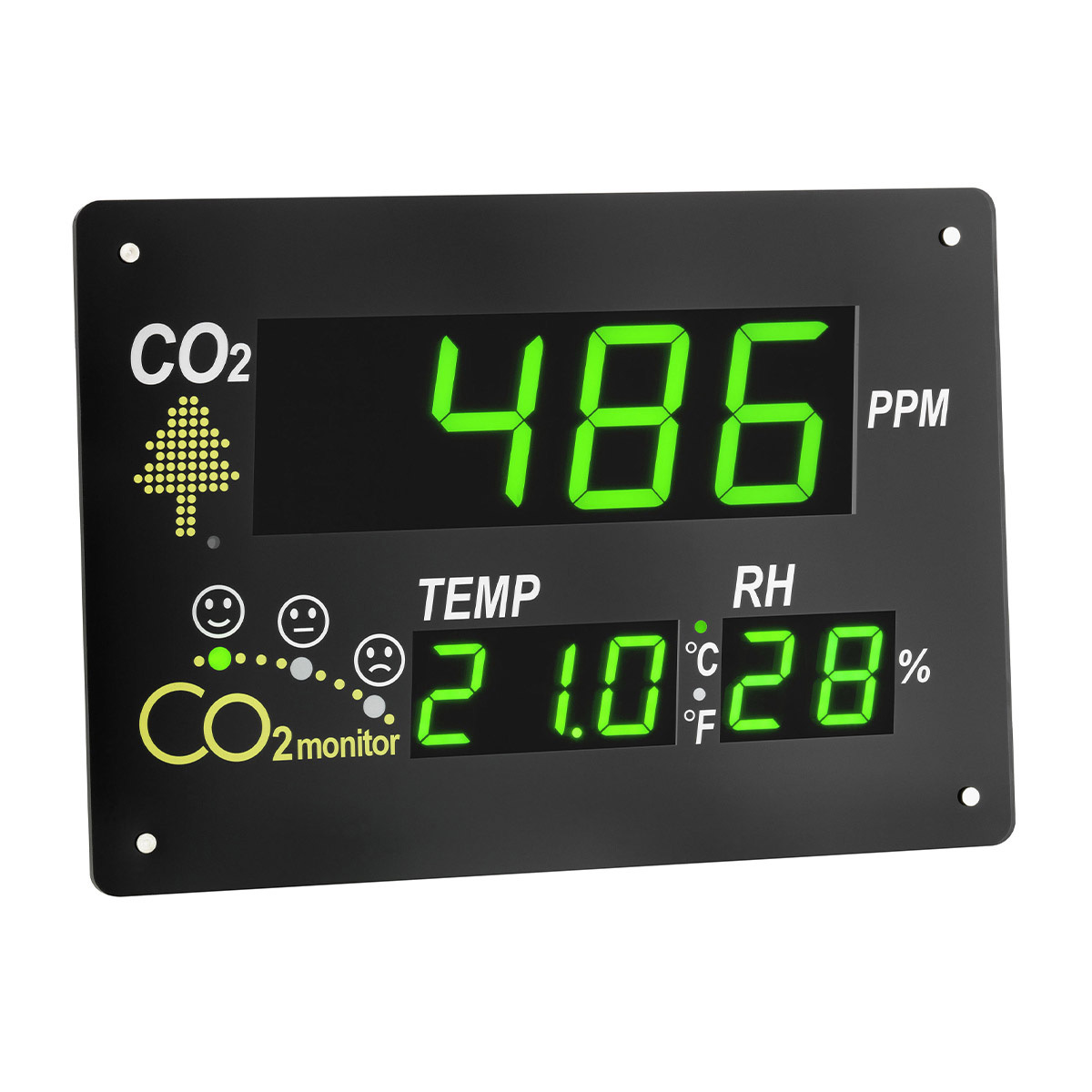

The AIRCO2NTROL OBSERVER 31.5002 is a comprehensive indoor air quality monitor designed to help maintain healthy environments in schools, offices, and public spaces. This sophisticated device features a large-format XL display with bright LED digits that show real-time CO2 levels from 0 to 3000 ppm, along with temperature (0 to 40°C) and humidity (20-90%) readings. Its intuitive traffic light system uses colored smileys that shift from green to yellow to red as air quality changes, making it easy to identify when ventilation is needed. Equipped with a high-quality NDIR Dual Beam sensor for accurate CO2 detection and automatic brightness adjustment for optimal visibility, the monitor helps prevent headaches, fatigue, and discomfort associated with poor air quality. The unit can be wall-mounted or free-standing, offering flexible placement options while its substantial display ensures readings are visible from across the room, enabling timely and energy-efficient ventilation decisions.
Key Features
Large XL LED display with auto-brightness adjustment
Color-coded smiley traffic light system for air quality
High-quality NDIR Dual Beam CO2 sensor
Monitors CO2, temperature, and humidity levels
Easy-to-read display visible from distance
Flexible mounting options (wall or free-standing)
Designed for professional environments (schools, offices, public buildings)
Key Characteristics
CO2 Measurement Range: 0 to 3000 ppm
Temperature Range: 0 to +40°C
Humidity Range: 20 to 90%

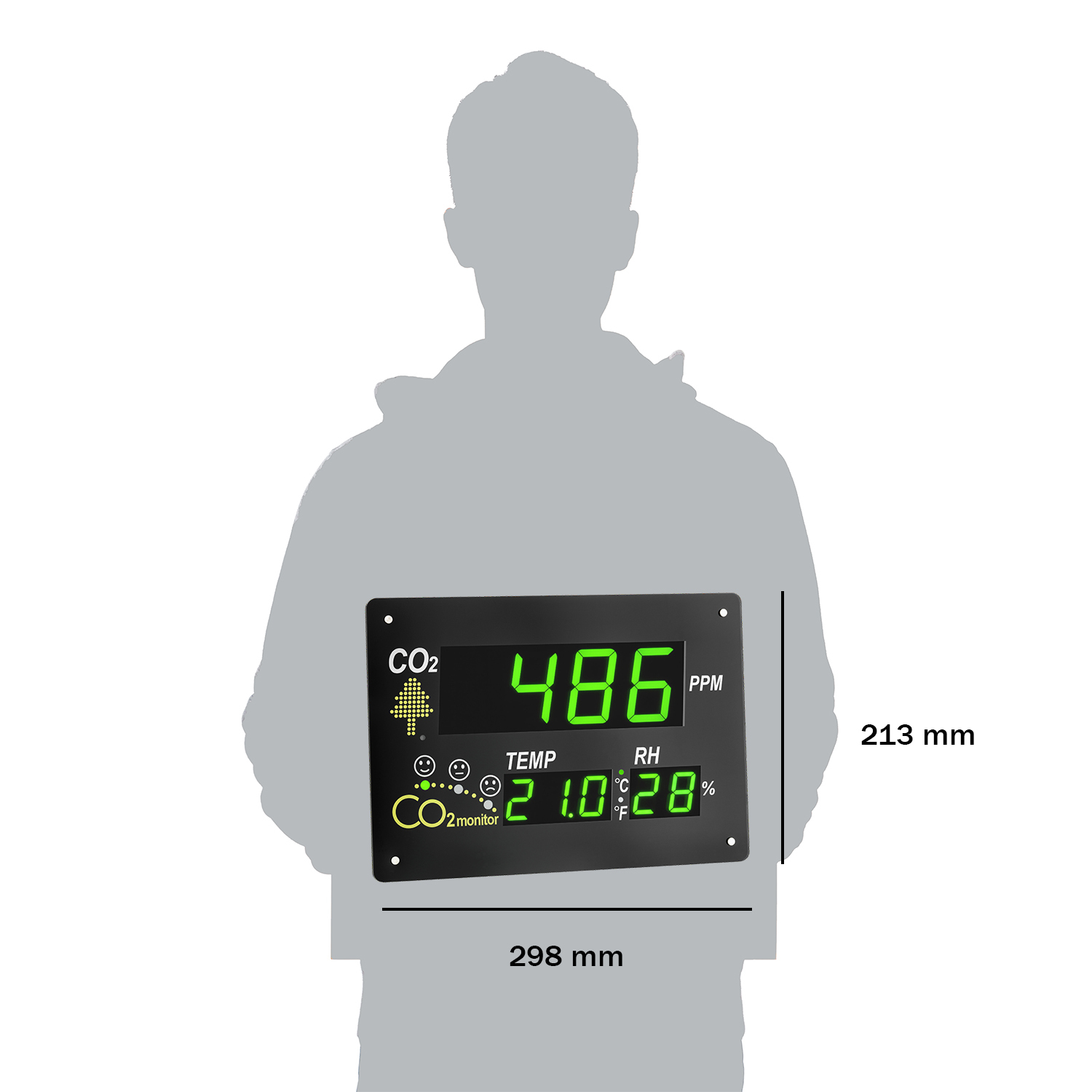

Dimensions: 298 x 44 (122) x 213 mm
Weight: 1075g
Power Source: AC adapter (EU plug)
Material: Plastic construction
Display Features: LED digit display / Three-color smiley indicators / Automatic brightness adjustment
Installation Options: Wall-mounted / Free-standing
Includes power adapter and instruction manual
