Illuminance Meter

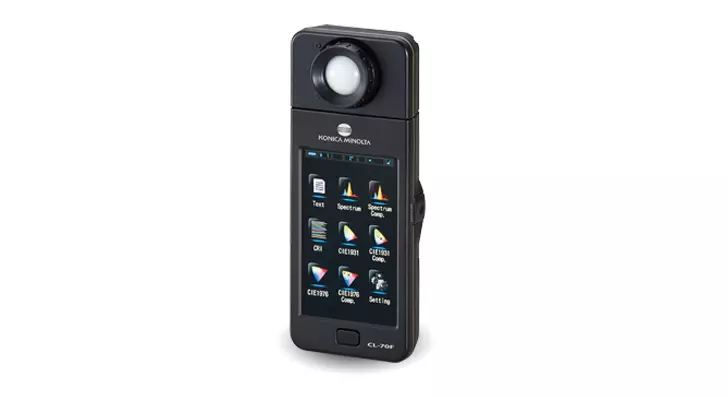

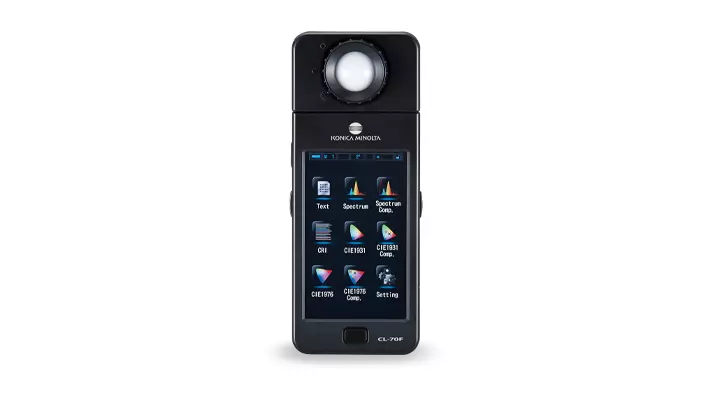

Konica Minolta CL-70F

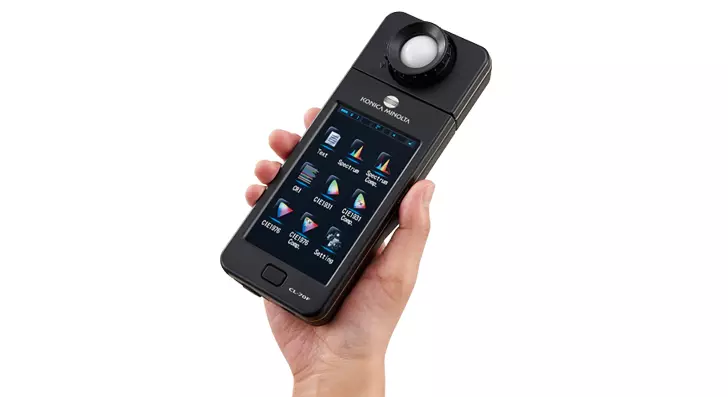

The CL-70F Illuminance Meter is a versatile, entry-level solution for comprehensive light source analysis. This portable, handheld device measures a wide range of lighting parameters including Color Rendering Index (CRI), spectral irradiance, and correlated color temperature across a wavelength range of 380-780 nm. Designed for in-field use, it features a rotating sensor head and touch screen for easy operation in various lighting conditions. The CL-70F is ideal for evaluating both traditional and modern light sources, including LEDs and EL lighting, in applications ranging from interior design to psychological research environments. Its ability to measure photographic flash with a sync cable adds to its utility. Conforming to DIN 5032 Part 7 Class C standards, this cost-effective meter comes with CL-SU1w utility software for enhanced data capture and analysis, making it an invaluable tool for lighting professionals and researchers alike.

Key Features

  • Measures Color Rendering Index (CRI), spectral irradiance, and illuminance

  • Wavelength range: 380 - 780 nm

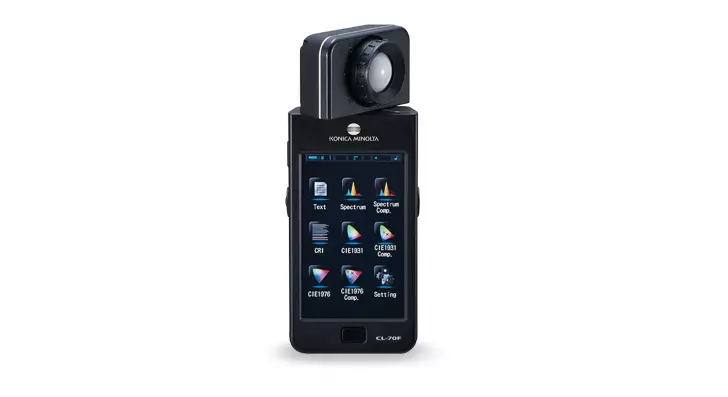

  • Rotating sensor head for flexible positioning

  • Touch screen interface for easy operation

  • Battery-powered for portability

  • Compatible with flash sync cables for measuring photographic flash

  • Includes CL-SU1w utility software for data analysis

  • Conforms to DIN 5032 Part 7 Class C standards

Key Characteristics

  • Measures correlated color temperature (CCT) and difference from blackbody locus (Δuv)

  • Provides tristimulus values, chromaticity coordinates

  • Calculates dominant wavelength and excitation purity

  • Displays spectral curve (at 10nm intervals)

  • Capable of measuring difference values from a target

  • Suitable for LED, fluorescent, and other light sources

  • Designed for both indoor and outdoor use

  • Applicable in various fields: lighting design, photography, research, quality control

  • Entry-level access to professional-grade light measurement data
