Luminance meters

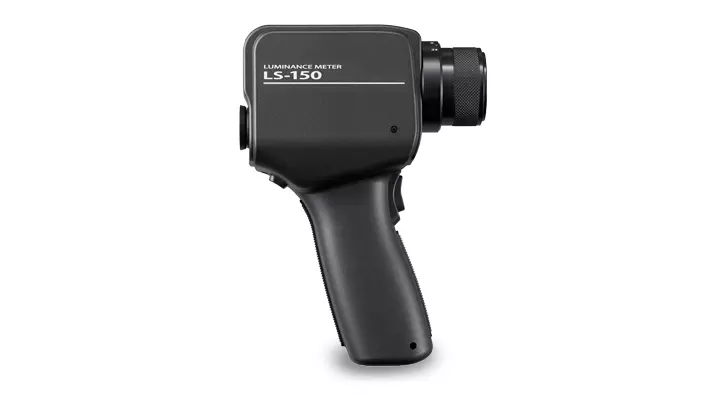

Konica Minolta LS-150 / LS-160
The Konica Minolta LS-150 and LS-160 are advanced, portable luminance meters designed for precise measurement of light sources and reflected light. These handheld devices offer improved functionality over their predecessors, featuring an expanded measurement range up to 999,900 cd/m² (LS-150) and 9,999,000 cd/m² (LS-160), with enhanced accuracy conforming to DIN 5032-7 Class B standards. Equipped with SLR optics and a pistol grip design, these meters ensure easy targeting and measurement of even small areas. The LS-150 provides a 1° measurement angle, while the LS-160 offers a more precise 1/3° angle. Both models feature a virtually flare-free optical system, reducing measurement errors from ambient light. With simultaneous display on an integrated LCD screen and viewfinder, these versatile instruments are ideal for a wide range of applications, from measuring display technologies to evaluating road and airport lighting. The included CS-S20 Data Management Software enhances data analysis capabilities, making these luminance meters essential tools for lighting professionals and researchers.
Key Features
Portable, handheld design with SLR optics and pistol grip
Expanded measurement range (up to 999,900 cd/m² for LS-150, 9,999,000 cd/m² for LS-160)
Conforms to DIN 5032-7 Class B standards (LS-150)
Virtually flare-free optical system
Simultaneous display on LCD screen and viewfinder
Improved V(λ) correlation (CIE relative photopic luminosity curve)
Compatible with CCD adapter for integration with custom software and automation
Includes CS-S20 Data Management Software
Key Characteristics
Measurement Angle: 1° (LS-150); 1/3° (LS-160)
Measurement range: 0.001 - 999,900 cd/m² (LS-150); 0.001 - 9,999,000 cd/m² (LS-160)
Lightweight and compact design
Battery-powered for portability
Targeting reticule in viewfinder for precise area selection
Suitable for measuring various light sources (CRTs, LEDs, ELs)
Applicable for road, tunnel, rail system, and airport lighting measurements
Capable of measuring both direct light sources and reflected light
Software available in multiple languages (English, French, German, Italian, Spanish, Simplified Chinese, Traditional Chinese)
